OS Filesystem Backup (Restic)

Operating System configuration files should be backed up so configuration at OS level can be restored.

Restic can be used to perform this OS filesystem backup. Restic provides a fast and secure backup program that can be intregrated with different storage backends, including Cloud Service Provider Storage services (AWS S3, Google Cloud Storage, Microsoft Azure Blob Storage, etc). It also supports opensource S3 Minio.

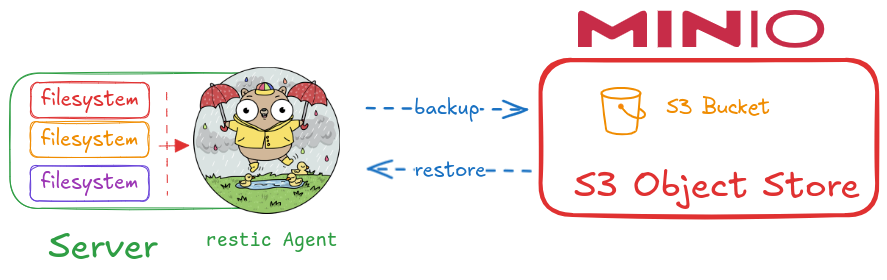

OS filesystems from different nodes of the cluster will be backed up using restic. As backend S3 Minio server will be used.

Restic installation and backup scheduling tasks can be automated with Ansible using ricsanfre.backup. This role installs restic and configure a systemd service and timer to schedule the backup execution. Also a backup policy indicating which file paths to include in the backup can be specified.

Minio Backupstore configuration

First S3 backupstore need to be configured

Install Minio backup server

See installation instructions in “PiCluster - S3 Backup Backend (Minio)”.

Configure Restic bucket and user

• Create bucket for storing Longhorn backups/snapshots

  mc mb ${MINIO_ALIAS}/restic


• Add restic user using Minio’s CLI

  mc admin user add ${MINIO_ALIAS} restic supersecret


• Define user policy to grant restic user access to backups bucket Create file restic_policy.json file:

  {
    "Version": "2012-10-17",
    "Statement": [
      {
          "Effect": "Allow",
          "Action": [
              "s3:DeleteObject",
              "s3:GetObject",
              "s3:ListBucket",
              "s3:PutObject"
          ],
          "Resource": [
              "arn:aws:s3:::restic",
              "arn:aws:s3:::restic/*"
          ]
      }
    ]
  }


  This policy grants read-write access to restic bucket

• Add access policy to restic user:

  mc admin policy add ${MINIO_ALIAS} restic restic_policy.json


Restic Installation

Binary installation

Ubuntu has as part of its distribution a restic package that can be installed with apt command. restic version is an old one, so it is better to install the latest version binary from github repository.

• Step 1. Download and install binary

  cd /tmp
  wget https://github.com/restic/restic/releases/download/v${RESTIC_VERSION}/restic_0.16.5_linux_${ARCH}.bz2
  bzip2 -d /tmp/restic_${RESTIC_VERSION}_linux_${ARCH}.bz2
  sudo cp /tmp/restic_${RESTIC_VERSION}_linux_${ARCH} /usr/local/bin/restic
  sudo chmod 755 /usr/local/bin/restic


  where:

  • ${ARCH} is amd64 or amr64 depending on the server architecture.
  • ${RESTIC_VERSION} is the version to be donwloaded

Create restic environment variables files

restic repository info can be passed to restic command through environment variables instead of typing in as parameters with every command execution

• Step 1: Create a restic config directory

  sudo mkdir /etc/restic


• Step 2: Create restic.conf file containing repository information:

  RESTIC_REPOSITORY=s3:https://${MINIO_SERVER}:9091/restic
  RESTIC_PASSWORD=${RESTIC_REPOSITORY_PASSWORD}
  AWS_ACCESS_KEY_ID=S{MINIO_RESTIC_USER}
  AWS_SECRET_ACCESS_KEY=S{MINIO_RESTIC_PASSWORD}


  In the previos file the following variables (${var}) need to be replaced by actual values:

  • ${MINIO_SERVER} FQDN of the Minio Server
  • ${RESTIC_REPOSITORY_PASSWORD}: repository password to initialize and access the restic repository

• Step 3: Export as enviroment variables, the content of the file

  export $(grep -v '^#' /etc/restic/restic.conf | xargs -d '\n')


  Important: This command need to be executed with any new SSH shell connection to the server before executing any restic command. As an alternative that command can be added to the bash profile of the user.

Copy CA SSL certificates

In case Minio S3 server is using secure communications using a not trusted certificate (self-signed or signed with custom CA), restic command must be used with --cacert <path_to_CA.pem_file option to let restic validate the server certificate.

Copy CA.pem, used to sign Minio SSL certificate into /etc/restic/ssl/CA.pem

Restic repository initialization

restic repository (stored within Minio’s S3 bucket) need to be initialized before being used. It need to be done just once.

For initilizing the repo execute:

restic init

For checking whether the repo is initialized or not execute:

restic init cat config

That command shows the information about the repository (file config stored within the S3 bucket)

Restic Operation

Execute restic backup

For manually launch backup process, execute

restic backup ${FILESYSTEM_PATH} --exclude ${EXCLUDE_PATTERN}

where:

• ${FILESYSTEM_PATH} is the filesystem path to backup
• ${EXCLUDE_PATTERN} contains a regular expression matching the files that need to be excluded from the backup

Backups snapshots can be displayed executing

restic snapshots

Restic repository maintenance tasks

For checking repository inconsistencies and fixing them

restic check

For applying data retention policy (i.e.: maintain 30 days old snapshots)

restic forget --keep-within 30d

For purging repository old data:

restic prune

Restic backup schedule and concurrent backups

• Scheduling backup processes

  A systemd service and timer or cron can be used to execute and schedule the backups.

  ricsanfre.backup ansible role uses a systemd service and timer to automatically execute the backups. List of directories to be backed up, the scheduling of the backup and the retention policy are passed as role parameters.

• Allowing concurrent backup processes

  A unique repository will be used (unique S3 bucket) to backing up configuration from all cluster servers. Restic maintenace tasks (restic check, restic forget and restic prune operations) acquires an exclusive-lock in the repository, so concurrent backup processes including those operations are mutually lock.

  To avoid this situation, retic repo maintenance tasks are scheduled separatedly from the backup process and executed just from one of the nodes: gateway

Backups policies

The folling directories are backed-up from the cluster nodes

Backup policies scheduling

• Daily backup at 03:00 (executed from all nodes)
• Daily restic repo maintenance at 06:00 (executed from gateway node)
